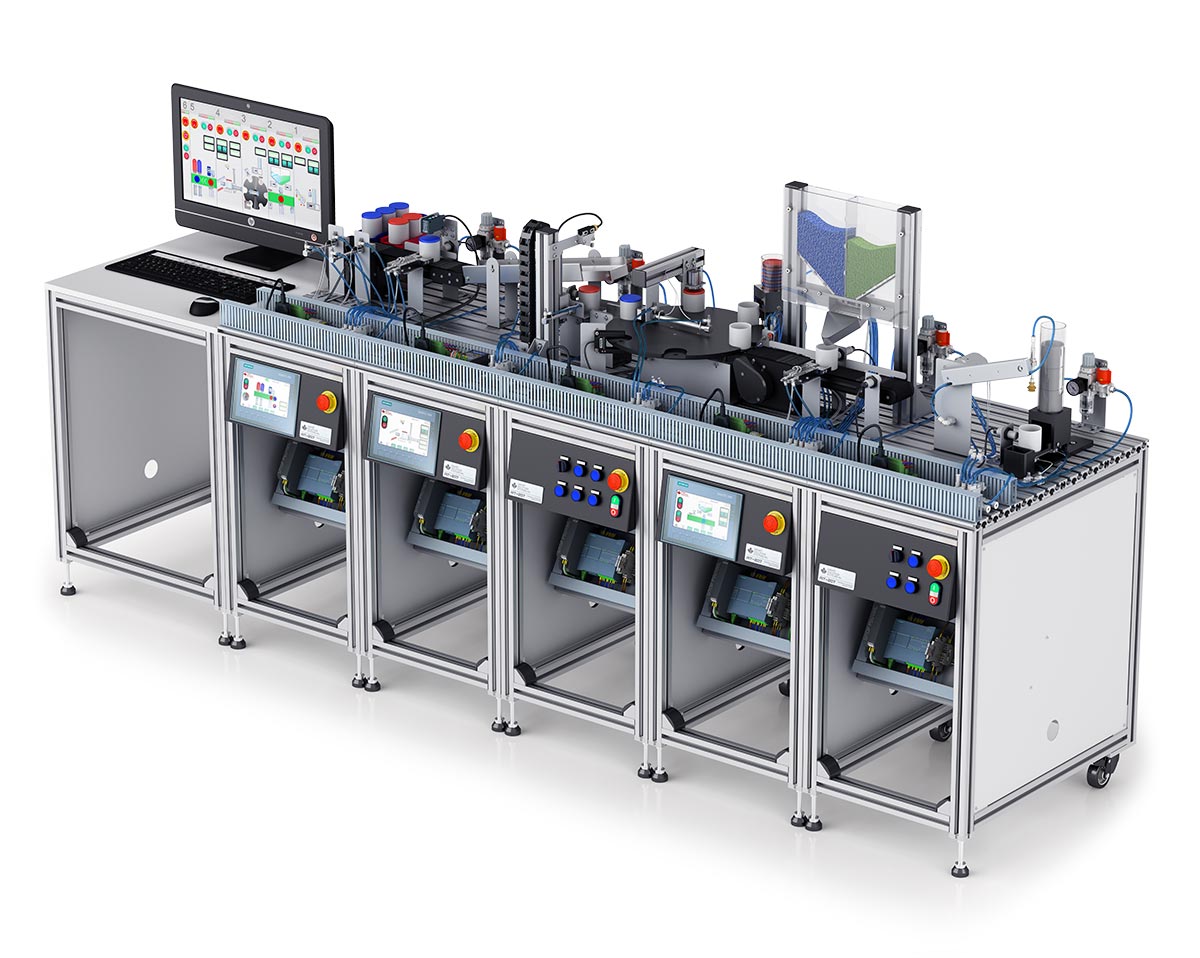

AT-207 systems are specifically designed to meet all industrial automation training concepts and principles. The stations can be used to arrange a complete line and simulate real-world applications carried out by fully automated manufacturing systems.

It is also possible to use each station as a separate unit. Students can benefit from the practical design of the system and learn professional concepts of automations in course of an enjoyable experience.

All the stations are equipped with SIEMENS S7 PLC’s, which can prepare the students to get familiar with the expertise of a world leader in industrial automation. Additionally, each station is equipped with the state of the art Human Machine Interface (HMI) units of SIEMENS with screen touch panels. The WinCC® software supplied with the system help student to learn concepts of designing HMI in real situations.

Function:

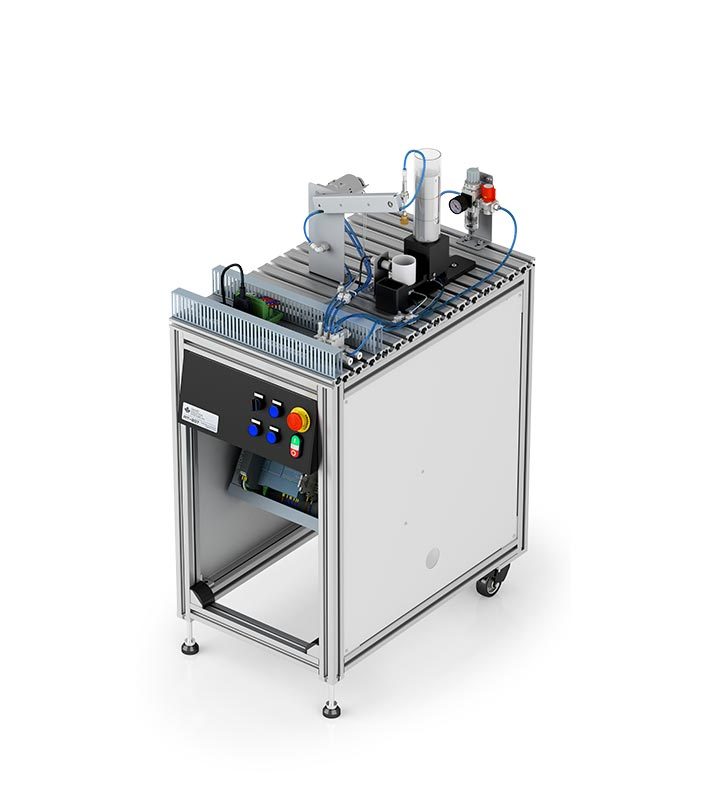

Picking the work-pieces (empty cups) form the input magazine and feeding them into the next station.

Main Technological Features:

• Rotary Air Actuators
• Liner Air Actuators
• Vacuum Technology
• Magnetic Induction Sensors
• Limit Switches

Main Components:

• Air Treatment Unit
• Air Actuators
• Electro-Actuated Air Valves
• Programmable Logic Controller (PLC)

Function:

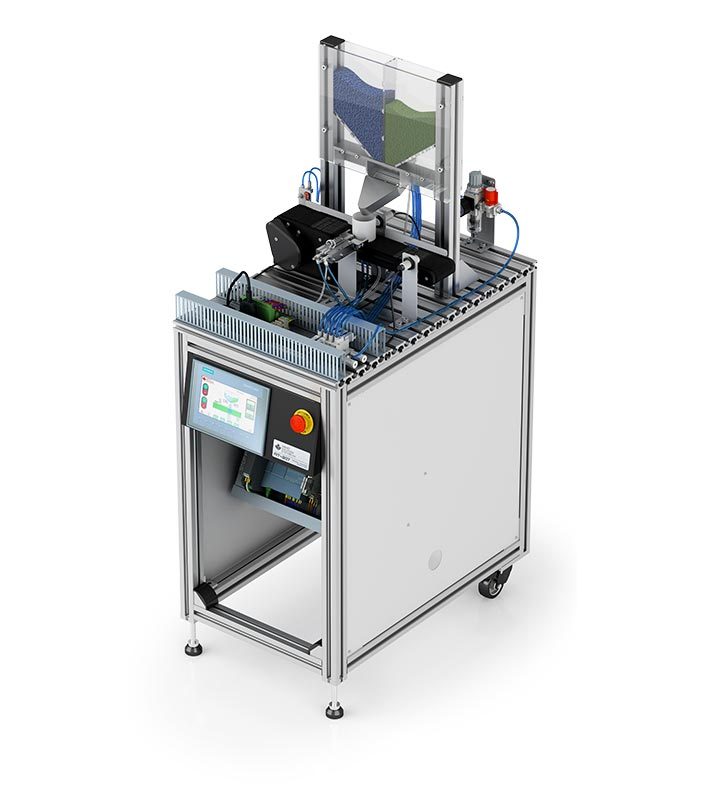

Filling the supplied cups with two different kinds of solid granular material.

Main Technological Features:

• Conveyor belt
• Liner Air Actuators
• Process Planning and Timing
• Magnetic Induction Sensors
• Capacitive Sensors

Main Components:

• Air Treatment Unit
• Air Actuators
• Electro-Actuated Air Valves
• Programmable Logic Controller (PLC)
• Human Machine Interface (HMI)

Function:

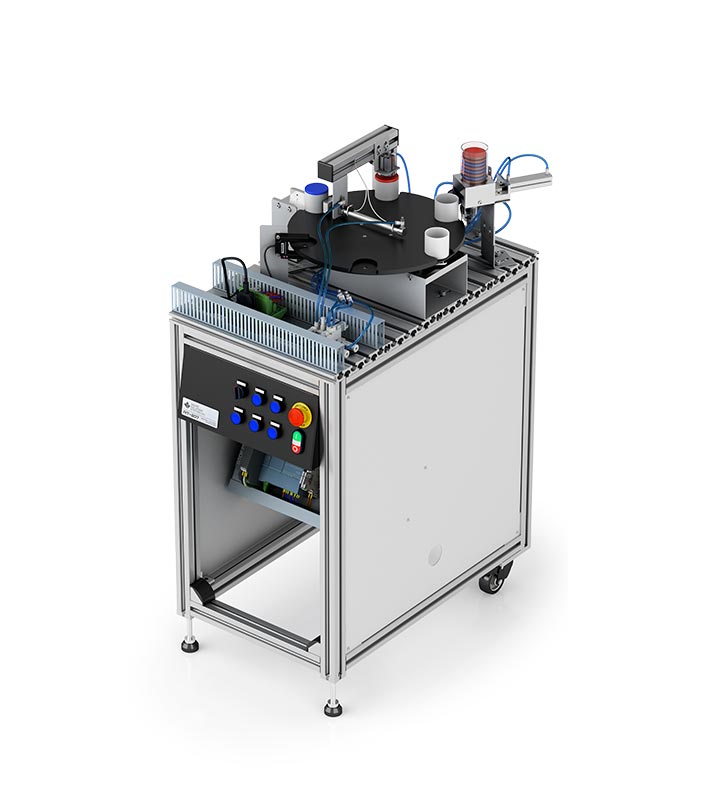

Placement of the lids on the cups.

Main Technological Features:

• Rotary Indexing Table
• Liner Air Actuators
• Magnetic Induction Sensors
• Optical Sensor

Main Components:

• Air Treatment Unit
• Linear and Rotary Air Actuators
• Electro-Actuated Air Valves
• Programmable Logic Controller (PLC)

Function:

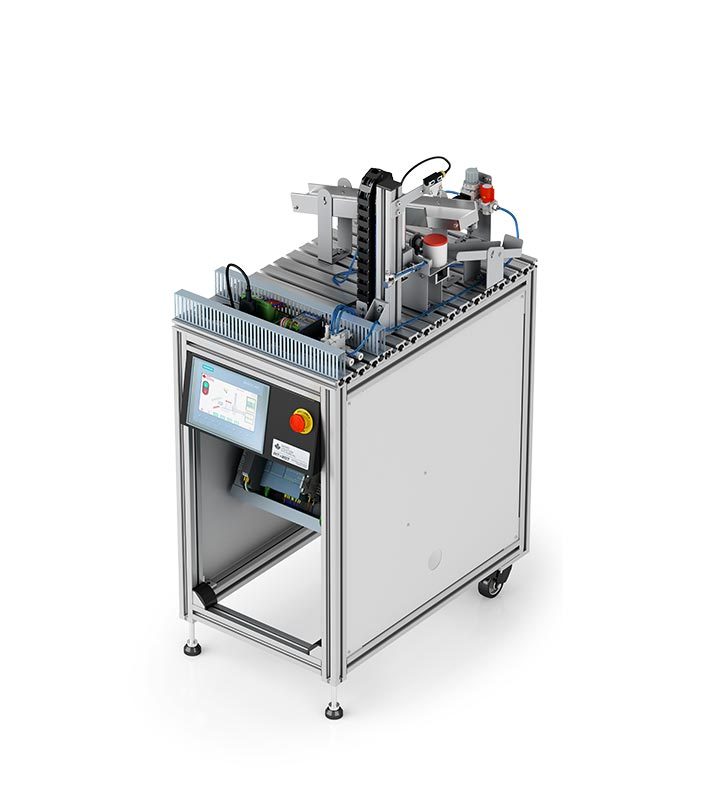

Weighing the filled cups and lifting them up onto an air slide to move to the next station and rejecting the cups weighing less or more than the set value.

Main Technological Features:

• Rod-less Linear Air Actuators
• Air-Slide
• Retro-Reflective Optical Sensor
• Magnetic Induction Sensors
• Weight Measurement Technology

Main Components:

• Air Treatment Unit
• Rod-less Linear Air Actuators
• Electro-Actuated Air Valves
• Weight Sensor and Signal Conditioner
• Programmable Logic Controller (PLC)
• Human Machine Interface (HMI)

Function:

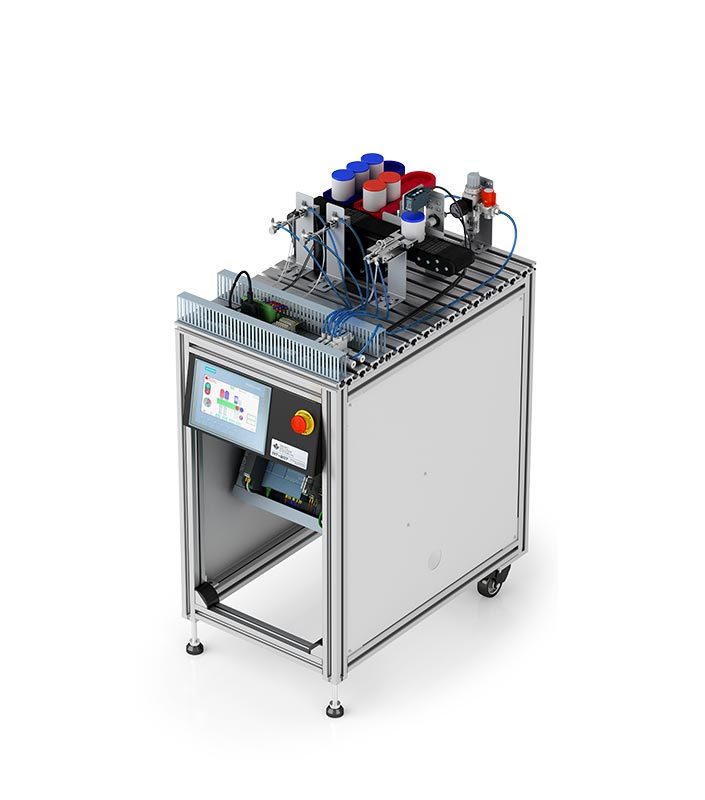

Detecting the color or sign on the cup lids and storing the cups in the envisaged stacks.

Main Technological Features:

• Belt-Conveyor Technology
• Liner Air Actuators
• Magnetic Induction Sensors
• Optical Sensor
• Capacitive Sensor
• Color Sensor (Optional)

Main Components:

• Air Treatment Unit
• Linear Air Actuators
• Electro-Actuated Air Valves
• Belt-Conveyor System
• Programmable Logic Controller (PLC)
• Human Machine Interface (HMI)

Function:

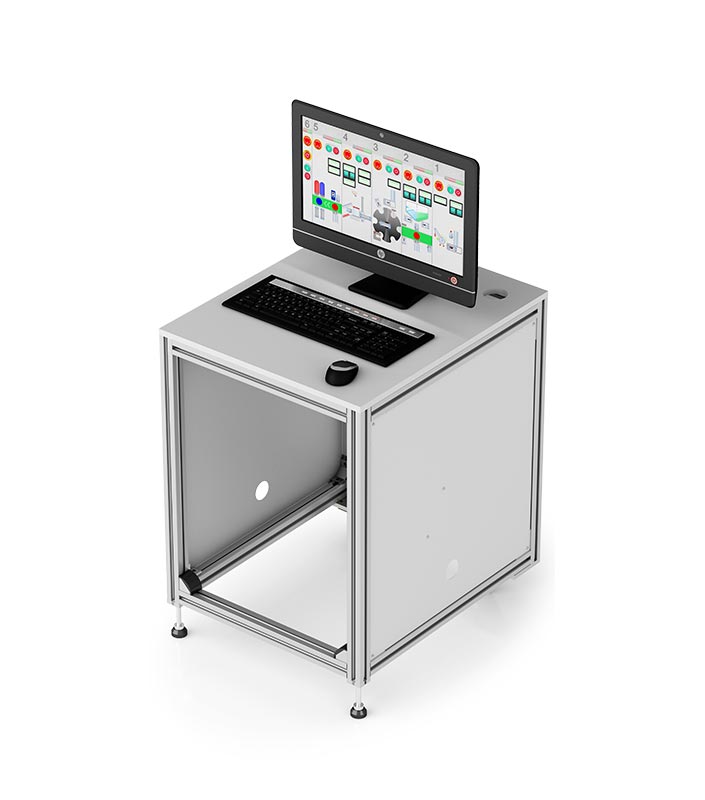

Monitoring the manufacturing line and enabling operators to check the status of the sensors and actuators at every station.

Main Technological Features:

• Field-Bus industrial network technology
• HMI programming

Main Components:

• Desktop /Laptop PC
• Programmable Logic Controller (PLC)
• SIMATIC CP-5611 Profi-Bus PCI card
• SIMATIC Step7 Professional Edition
• WinCC Flex 2008
